Full service open cleaning and replacement the thermal paste and upgrading nvme m.2 and ram ddr4 memory.

• 0:00 Introduction
• 0:15 Remove the rubber feet foot strips
• 0:27 Unscrewing the screw on the cover
• 0:40 Open the cover
• 1:00 Removing ssd
• 1:02 Unscrew the battery screws and remove the battery.
• 1:12 Disconnect the flat cable.
• 1:13 Unscrew the screws.
• 1:20 Disconnect the fan cable and remove the fan.
• 1:28 Unscrew the screw cooler and clean it
• 1:37 Remove or upgrade Ram SODIM DDR4
• 1:40 Clean off the old thermal paste
• 1:52 Apply new thermal paste
• 2:03 Screwing of the cooler
• 2:22 Install the fan and secure it with a screw.
• 2:39 Place the ssd and tighten the screw on the ssd
• 2:44 Insert and screw the battery in
• 3:01 Put the lid on.
• 3:17 Screw the screws on the lid.
• 3:35 Install the rubber feet foot strips
• 3:44 THE END

HP models: 15s-fq1000 15s-fq5304nz 15s-fq5185tu 15s-fq1705nz 15s-fq5209TU 15s-fq1005ua 15s-fq1515na 15-d5000 and other models using the chassis 15s-fq1xxx ...

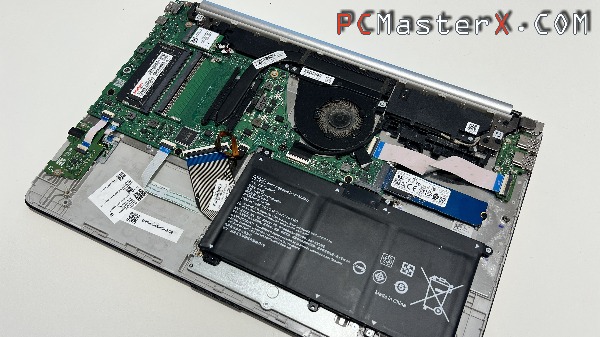

Mainboard:

1. DA0P5NMB8E0 REV: E
2. DA0P5DMB8C0 REV: C
3. DA0P5HMB8E0 REV: E
4. DA00P5MB6D0
5. DA0P5HMB8F1
6. DA0P5HMB8J0

Full program open replacement the thermal paste and cleaning You can also see how to upgrade ssd m.2 and ram memory ...

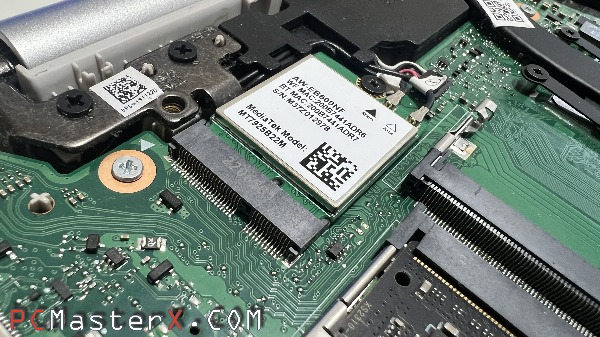

Wireless: If you are wondering whether your laptop will support a wireless card, I have prepared a list of cards that I have tried, that is, tested. Intel BE200NGW is by far the best because it supports 6GHz at 320Hz channel width, while MediaTek MT7925B22M works at 6GHz but at 160Hz channel width. Both models support the Wi-Fi 7 .

I have tested the following WiFi 7 and 6 cards that work on this laptop.

1. Intel BE200NGW
2. MediaTek MT7925B22M
3. Realtek RTL8852BE (PCIE+USB3)
4. MediaTek MT7921 AW-XB468NF REVOA

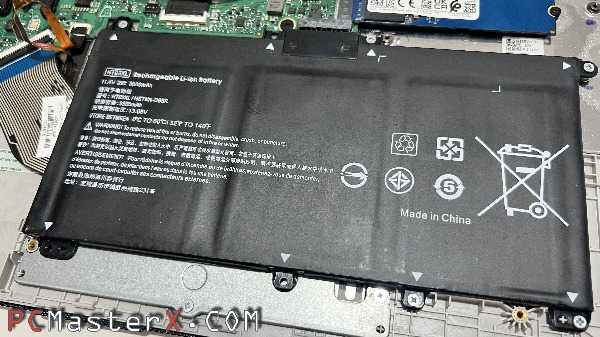

Battery:

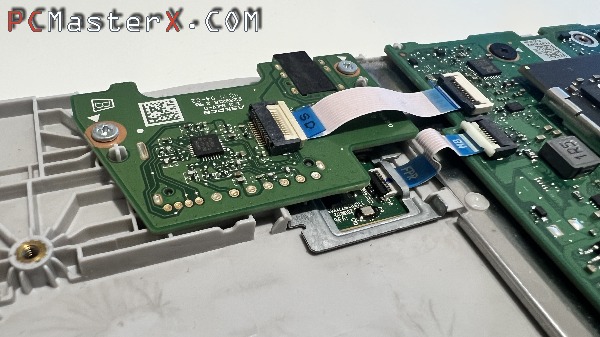

Fingerprint Scanner:

Specification

CPU Intel Core i5-1035G1 (15s-fq1705nz)

CPU Intel Core i3-1215U (15s-fq5304nz)

Chipset Intel Integrated SoC

Memory 16 GB DDR4-2666 - 3200 SDRAM

VGA Intel UHD Graphics - Mesa Intel Graphics (ADL GT2)

SSD PCIe NVMe™ M.2 SSD

Display 39.6 cm (15.6") diagonal FHD IPS anti-glare micro-edge WLED-backlit (1920 x 1080)

Wireless Intel Wi-Fi 6 AX 201 (2x2) and Bluetooth® 5 Combo

It works extremely well under linux ubuntu 22.04.2
